CASE STUDY: ProMinent eQuote Software

< back to case studies
Screenshot of Web-Based Quoting App


ProMinent, a leading provider of fluid and gas pumps and accessories, approached us to talk about developing custom online configuration and pricing software for their products. At the time, they were using custom software that had been built on an Access database and that required installation on distributors’ local machines. Concerned about the multi-step installation process, the incompatibility with non-PC computers, and issues with keeping everything up to date, ProMinent wanted to implement a web-based system that would be easier to maintain and that would provide a simpler experience for their distributors.


We sat down with key stakeholders at ProMinent’s North American headquarters in Pittsburgh. Their existing software had been developed in-house and we were very fortunate to be able to talk directly with their original software programmer.

It was openly acknowledged that the project was complex. Each pump had up to 25 different parameters that would need to be configurable, and these parameters contained many dependencies and exclusions. The system would also need to include several other features, including a couple different product search systems and functionality for distributors to input custom pricing and discount settings for their customers.

From a usability perspective, we learned that there were a number of user interface features in their existing system that were well-liked by their customers that they would like to retain in the new system, if possible. At the same time, we all realized that it would be necessary to fully rethink the user interface in order to make the software adhere to expected conventions on the web.

The Solution

We began by exploring a number of different possible approaches. Speed was a high priority, and that took some potential solutions off of the table.

The complex product dependencies were stored in the company’s product database and written in SAP rule language. The dependencies needed to be maintainable in the database (rather than hard-coded in the system). We decided to implement an SAP rule parser using javascript, partly because this approach would be significantly faster than implementing this functionality using PHP and Ajax.

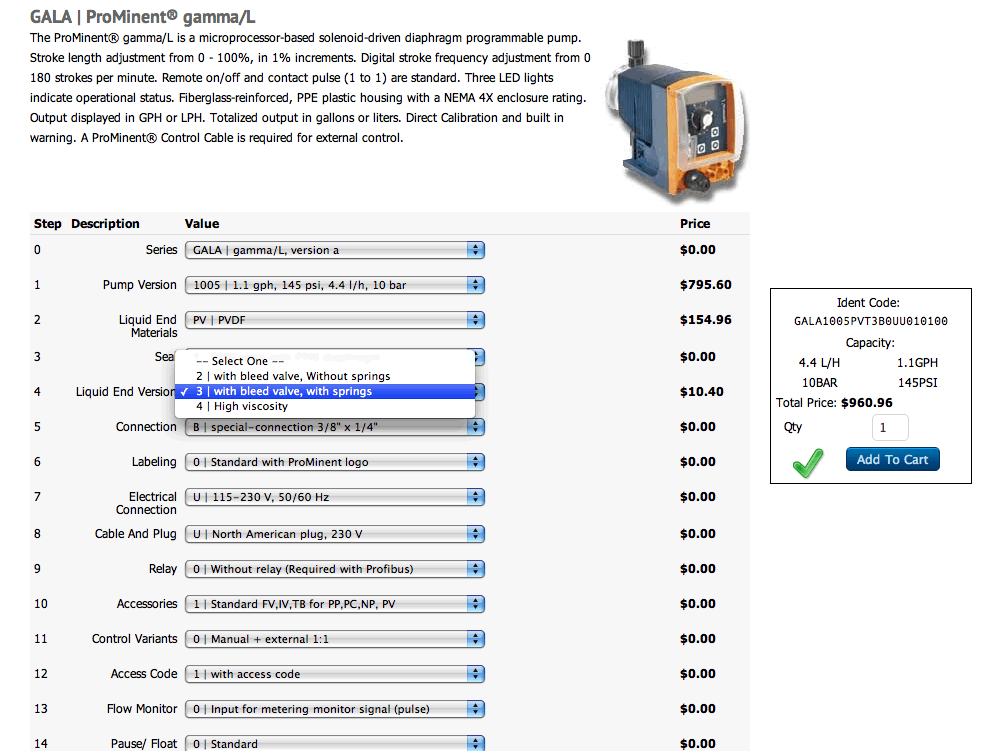

Web Application Product Configuration Screenshot
Product configuration and pricing tool. The user’s selection in each step affects the options that are available in all other steps, based on database rules.

We utilized a shopping cart metaphor to manage multiple items in the quote. We included both general, and detailed product views as options in the shopping cart.

Screenshot of Shopping Cart
Detail view of shopping cart

Because distributors use the quote system to generate price quotes for their clients, it was necessary to provide them with some additional pricing tools. We built in the ability to let users set up their own discount rules and to modify prices on the fly.

Screenshot of Discount View
Shopping cart discount view

Due to the high number of pumps and accessories available, it was necessary to build search functionality to help distributors identify appropriate equipment. We included functionality to search for pumps by gallons per hour and PSI.

Screenshot of Web App Search Functionality
Users can search for a pump based on gallons per hour range and PSI range.

We also included lookup functionality for identifying chemical resistance levels for various materials. This helps distributors select the correct materials for their parts.

A chemical resistance lookup tool was included to help distributors select the best materials for each project.


The software launched on time and is currently in use by ProMinent’s distributors across the United States. We subsequently released a similar product for use by ProMinent’s Canadian distributors.


  • Consulting / Project management
  • Business analysis
  • Web design
  • User interface design
  • Javascript/ JQuery
  • SAP parsing
  • PHP / CakePHP programming
  • MySQL database
